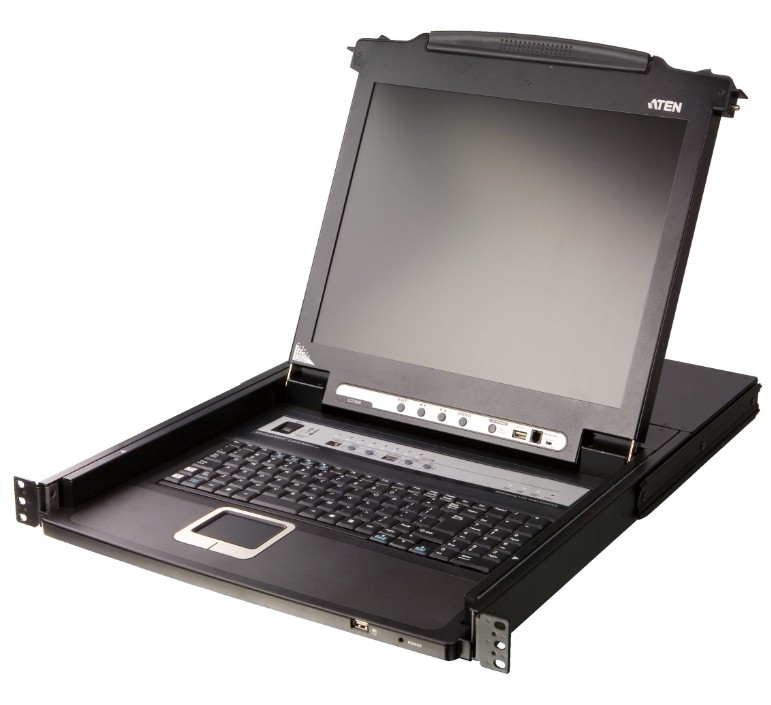

Aten Rackmount 17.3′ FHD LCD 8-Port PS/2-USB VGA Single Rail LCD KVM Switch, control up to 256 computers from a single console

Description

The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17′, 17.3′ or 19′ LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. The 17.3′ LCD monitor offers Full HD superior video quality for enhanced visibility and clarity.

The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

CL5708M: 17′ LCD
CL5708MW: 17.3′ FHD LCD
CL5708N: 19′ LCD
CL5708FM: 17′ LCD with fingerprint reader (Discontinued)

Package Contents
1x CL5708 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8 m/6 ft)
1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x Firmware Upgrade Cable(1.8 m/6 ft)
1x Power Cord (AC Power Models)
1x User Instructions
