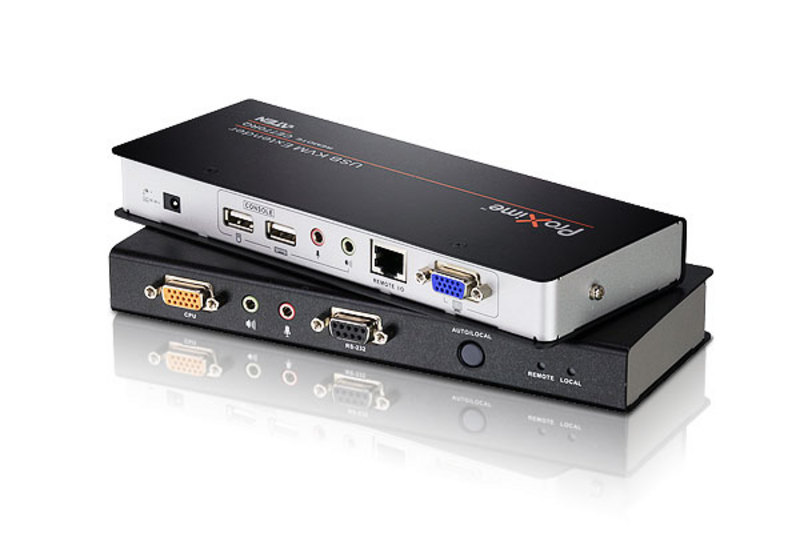

Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920×1200@60Hz 150m, 1280×1024@60Hz 300m

Description

•Local and Remote Units connect at distances up to 300 m using Cat 5e cable
•Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
•Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance
•Built-in ASIC for greater reliability and compatibility
•Auto Signal Compensation (ASC)
•RS-232 serial ports – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
•Sun/Mac keyboard support and emulation*
•Audio Enabled – supports stereo speakers and microphone
•USB overcurrent detection and prevention
•Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes, with the press of a single button
•Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
•High resolution video – up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
•Superior Audio – no loss in audio quality at 300 m
•Spports Wide Screen formats
•Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
•Hot pluggable
•Rack mountable
•Easy to install – no software required – connecting cables to the devices is all it takes

*1. PC keyboard combinations emulate Sun/Mac keyboards
*2. Sun/Mac keyboards only work with their own computers

Compatible Cables: 2L-5301U, 2L-5302U, 2L-5303U, 2L-5304U, 2L-5305U, 2A-130G
