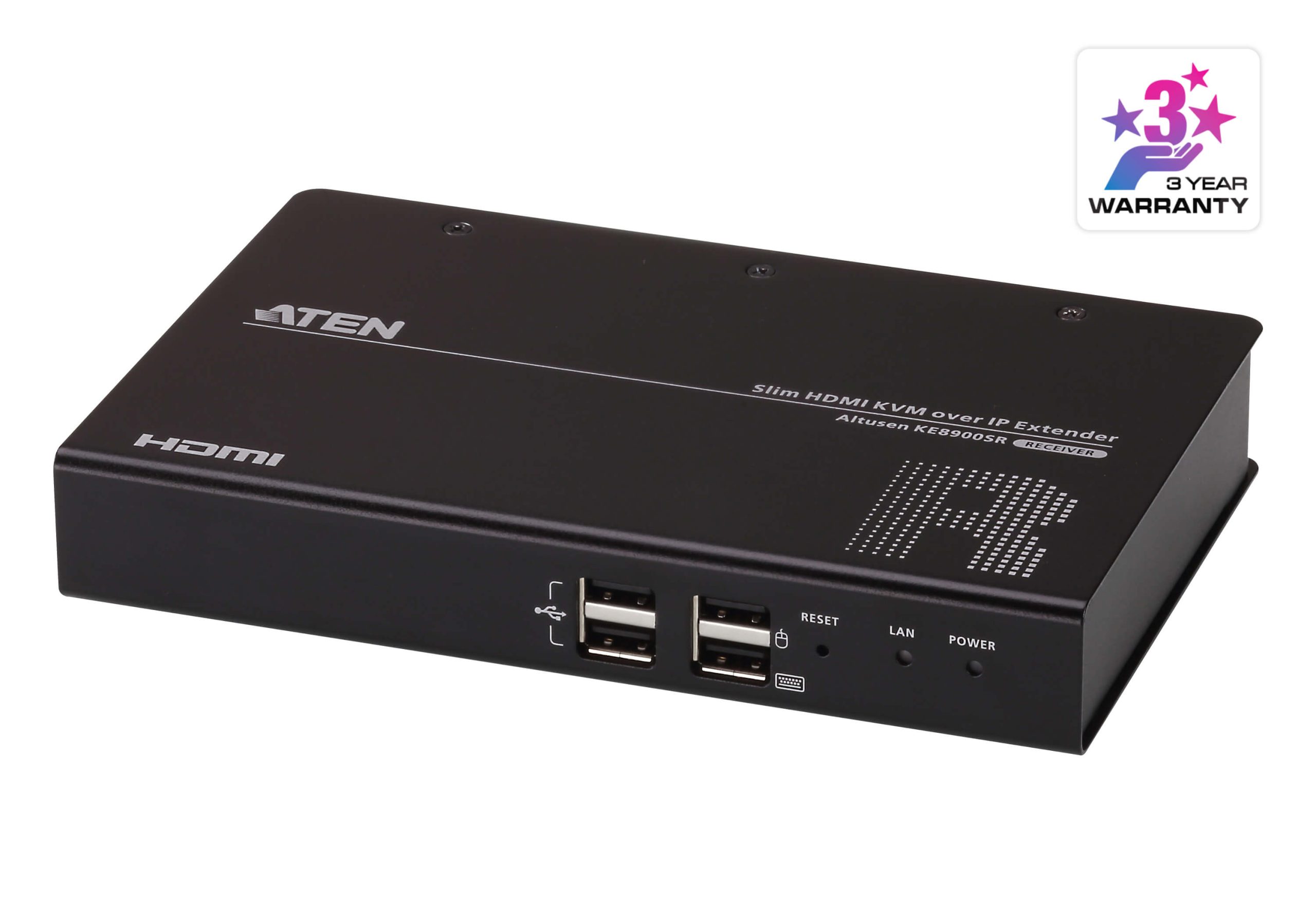

Aten HDMI Slim KVM over IP Receiver, supports up to 1920 x 1200 @ 60 Hz

Description

Advance processor provides visually lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; compliant with HDMI 1.4a and HDCP 1.4
Flexible connections – allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design
Push and Pull – share content instantly by just one click
Connectors
Virtual Media 2 x USB Type A Female (Black)
Console Ports 2 x USB Type A Female (Black)
1 x HDMI Female (Black)
1 x DB-9 Male (Black)
Power 1 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.35W:46BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.64 kg ( 1.41 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents
1x Slim HDMI Single Display KVM over IP Receiver
1x Power Adapter
1x Mounting Kit
1x HDMI Lockpro
1x User Instructions
