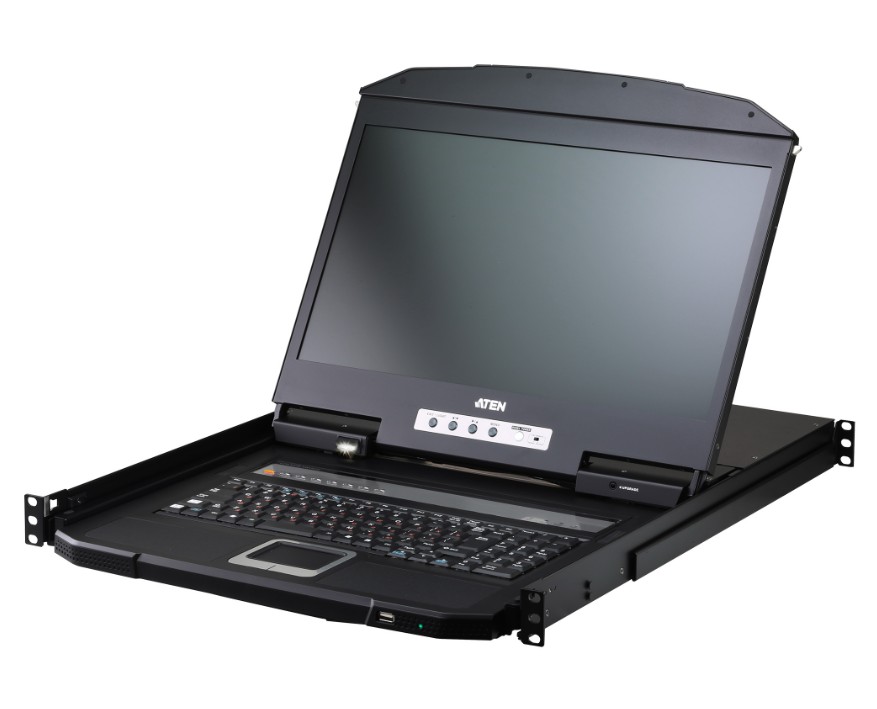

ATEN 8-Port USB HDMI Single Rail LCD KVM over IP Switch, 18.5′ LCD screen with Full HD resolution of 1920 x 1080, 1U short-depth

Description

Space Utility Optimization
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to enhance usability in dimly lit settings
Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows users to work with your rack-mounting equipment in narrow spaces
Console lock – enables the console drawer to remain securely locked away in position when not in use

Reliability and Operational Versatility
Superior video quality – up to 1920 x 1080 @ 60 Hz (CL3708NW) or 1366 x 768 @ 60 Hz (CL3708NX)
Cascade up to 2 levels – CL3708 controls up to 128 computers from a single console (With compatible KVM Switches1)
External console port – connect with a larger, higher-resolution monitor or pair with a KVM extender1 to extend the console to a remote location for increased operational efficiency
Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
Two level password security – only authorized users can view and control computers
Auto Scan mode – enables continuous monitoring of user-selected computers
Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Turkish and Traditional Chinese
Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse

Installation Flexibility
Standard rack mount kit included
Optional rack mount kits available including easy installation options2
No software required
Firmware upgradable
Supports hot-plugging

Note:
1. Please refer to the Compatible Products section below.
2. Contact your ATEN dealer for product information.

Package Contents
1 x CL3708 8-Port USB HDMI Single Rail WideScreen LCD KVM Switch with Standard Rack Mount Kit
2 x KVM cable sets (USB, HDMI, Audio; 1.8 m/6 ft)
1 x firmware upgrade cable
1 x power cord
1 x user instructions
