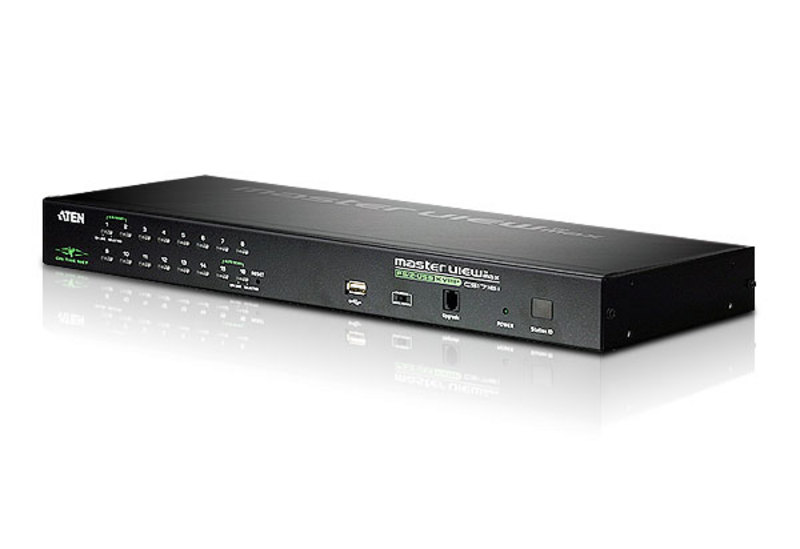

Aten 16 Port PS/2-USB 2.0 KVMP Switch over IP, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included

Description

Superior video quality – up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
Panel array mode enables user to monitor multiple servers from single screen at the same time – each selected server’s video output appears in a separate panel – users can easily select the number of panels to view

Computer Connections
Direct 16
Maximum 256 (via daisy chain)
Port Selection OSD/GUI; Hotkey; Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Male
Power 1 x DC Jack
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11
USB Port 1 x USB Type A Female
Switches
Reset 1 x Semi-recessed Pushbutton
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
10/100 Mbps 1 (Orange/Green – at LAN port)
Emulation
Keyboard / Mouse PS/2, USB
Video
Local 2048 x 1536; DDC2B
Remote FHD : 1920 x 1200 @ 60Hz
Non-FHD : 1600 x 1200 @ 60Hz
Scan Interval 1–255 sec.
Power Consumption DC5.3V:9.2W:58BTU
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.00 kg ( 6.61 lb )
Dimensions (L x W x H) 43.72 x 15.96 x 4.40 cm
(17.21 x 6.28 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
