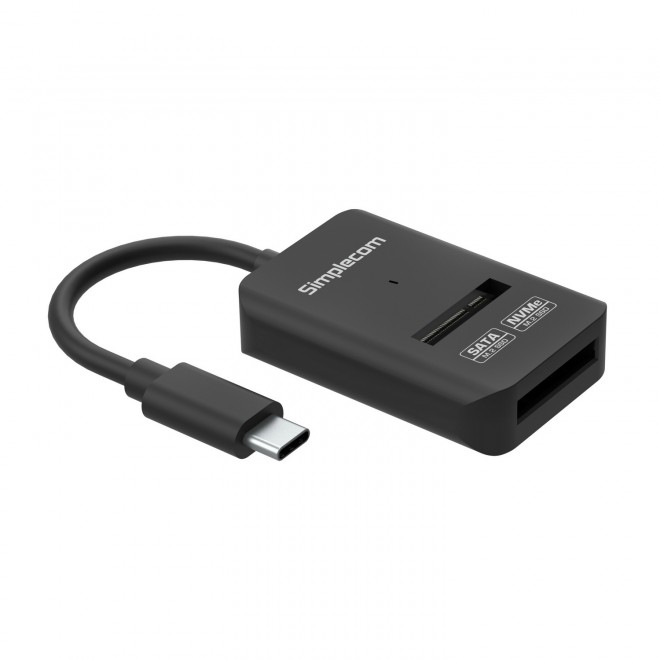

Simplecom SA506 NVMe / SATA Dual Protocol M.2 SSD to USB-C Adapter Converter USB 3.2 Gen 2 10Gbps

Description

SA506 is a M.2 SSD to USB-C adapter that supports both NVMe and SATA protocol based M.2 SSDs. No need to worry about which type of M.2 SSD you have, this adapter converts both SATA and NVMe M.2 SSD to USB-C for easy access on your computer.

This adapter is plug and play and USB powered, no external power needed to operate. USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. It’s an ideal solution for for data migration, drive cloning and data backup. Designed for fast and easy access of M.2 SSD, this cable style adapter makes it easy to swap multiple M.2 SSDs without having to install them into a PC or enclosure.

Features

Dual Protocol support for both NVMe and SATA M.2 SSD
Convert M.2 SSD (M Key or B+M Key) to USB-C
USB 3.2 Gen 2 interface up to 10Gbps transfer rate
Cable style adapter for easy swap and access of multiple M.2 SSDs
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
Plug and play, no driver required
LED indicator for power and activity status
Specifications

Model: SA506
Material: ABS Plastic
Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Compatible M.2 Type: NVMe M.2, SATA M.2
Compatible M.2 size: 2230 / 2242 / 2260 / 2280 / 22100
Dimension: 158x37x12mm (LxWxH)
Operation Temperature: 0 – 45°C
Operating System Support: Windows 7 and above, Mac OS 10.8 and above
Package Contents

1x SA506 M.2 SSD to USB-C Adapter
1x User Manual

Important Note

*SA506 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
