Shuttle PVG01 – VGA Port Extension for : DH610, DH610S, DH670, DH32U, DH410, DH470, XH510G, XH510G2

Description

PVG01 – DS81, DH110, DS87, DH170, XH81V

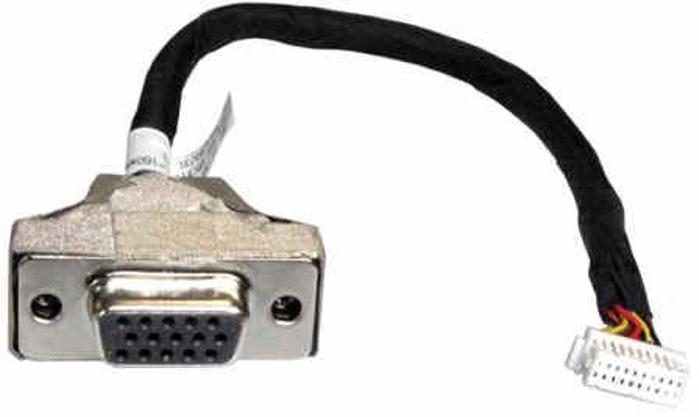

VGA port expansion kit for Shuttle Slim-PCs

The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For DS81 this also means only one serial interface (COM 1) can be used afterwards.
Note: Slim PCs with H81 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.
Scope of delivery:
– Adapter PVG01
– Installation guide
– Two screws

INTERNAL ADAPTER CABLE

Cable length
160 mm

Back panel connector
15-pin Mini D-Sub female socket (DE15)

Internal connector
Subminiature 2×10-pin, 1 mm Pitch Size, Female

Compatibility
Compatible to Shuttle Slim PC DS81, DS87, DH170, XH81, XH81V
