Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5′ HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount

Description

Shuttle DH32U XPC Slim, Pentium7505, Intel® DG1 Graphics, 4 x HDMI 2.0b, 2 COM, 2 LAN

Form Factor
Shuttle 1.3L Chassis

Processor
Intel Tiger lake-U Pentium 7505 15W

Memory
2 x 260 pin DDR4 SODIMM slots,32GB per DIMM (Max 64GB) Dual Channel DDR4 3200 Mhz

Video Output
HDMI 2.0b x 4 Quad Independence Video Output
4K/2K playback (Dual Channel Memory Recommended)
Support EDID Emulation Function(DH32UE series only)

Audio
Realtek ALC662/897/888S
2 Channel High Definition Audio

Ethernet
Intel i211x2 100Mb/s and 1Gb/s; Operation Supports Wake-On-LAN Function

Storage Interface
SATA 6.0Gb/s Interface

Onboard Connectors
1x SATA power connector
2x 4 pin fan connectors
1x Auto power on header
1x VGA
1x RS232
1x RS232/422/485
1x External 4 pin header (Power/Clear/CMOS/5V/GND

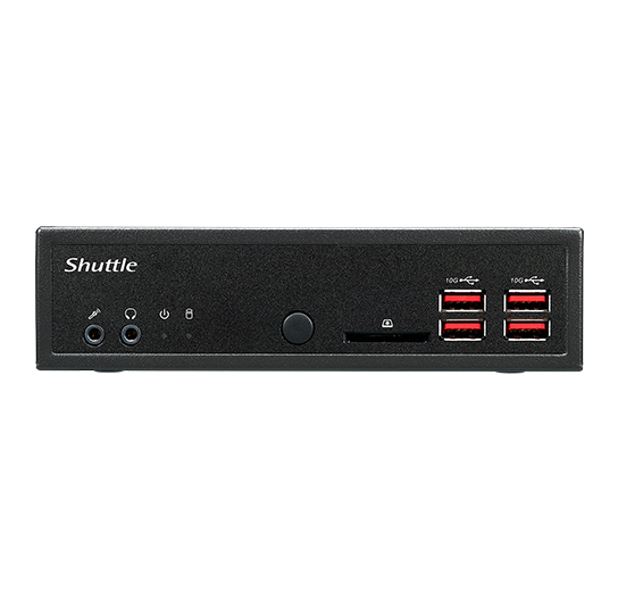

Front Panel
4x USB 3.2 Gen2 ports
1x Microphone-In
1x Earphone-Out
1x Power-On button
1x Power LED
1x HDD LED
1x SD Card reader

Back Panel
2x RJ45 Gigabit LAN port
4x HDMI port
4x USB 3.2 Gen1 ports
1x RS232
1x RS232/422/485
1x External power on/Clear CMOS header
1x Kensington lock
2x Wireless Antenna fixture
1x DC in

Drive Bays
1x 2.5′ HDD / SSD bay

Dimensions
190(L) x 165(W) x 43(H) mm

Power
90W Power Adapter
Input:100- 240V AC
Output: 19V 4.7A DC

Accessories
XPC DVD Driver
VESA mount

Expansiuon Slot
1x M.2 2280 Type M Key Socket
1x M.2 2230 Type E Key Socket

OS Support
Windows 10 64 bit O.S
Linux

Graphics
Intel Xe DG1 GPU
