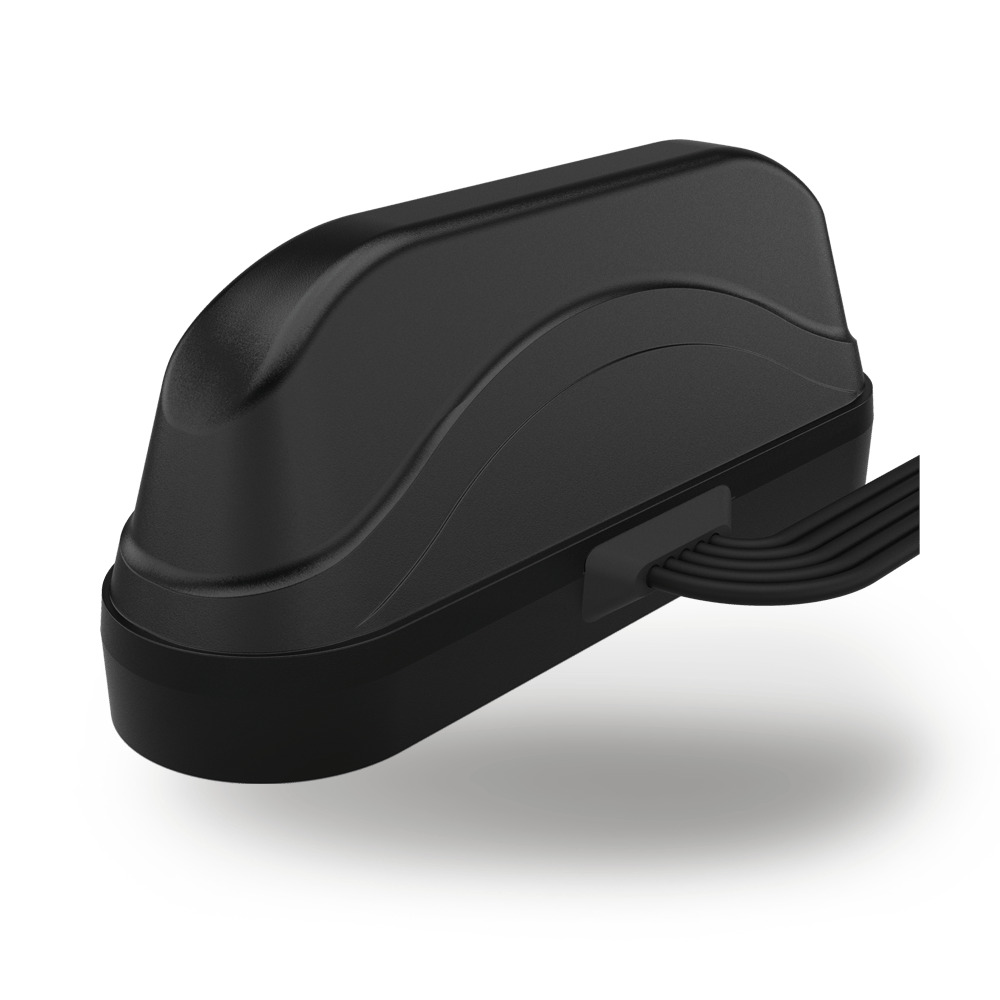

PANORAMA Compact Low Profile Magnetic Antenna, 2×2 MiMo 4G/5G Ready Covering 700-3800MHz WIFI 1m SP, Weatherproof IP66 Dual Band WiFi & Optional GPS/G

Description

PANORAMA Compact Low Profile Magnetic Antenna, 2×2 MiMo 4G/5G Ready Covering 700-3800MHz WIFI 1m SP, Weatherproof IP66 Dual Band WiFi & Optional GPS/G

This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications where installation without drilling a hole is desired. The L[G]AM consists of 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. The antenna is designed to be mounted magnetically.
Pattern Omnidirectional
Max Input Power(W) 25
Frequency Range | Gain 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi
Cellular LTE Elements 2 x 2 MIMO
WIFI Elements 2 x 2 MIMO; No
UHF Elements No
GPS Frequency Range 1562-1612MHz
LNA GAIN (dB) 26
Number of GPS Elements 1 Module; No
Cable Length – LTE min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
Cable length – GPS min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
Cable Length – WIFI min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
Cable Type (LTE) RG174
Cable Type (GPS) RG174
Cable Type (WIFI) RG174
Connector (WIFI) SMA Rev Pol
Connector (GPS) SMA (m)
Connector (LTE) SMA (m)
Mounting Type Temp Magnetic
Mounting Methods Magnetic
IP Rating IP66
Technology GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; GNSS; WIFI SISO
