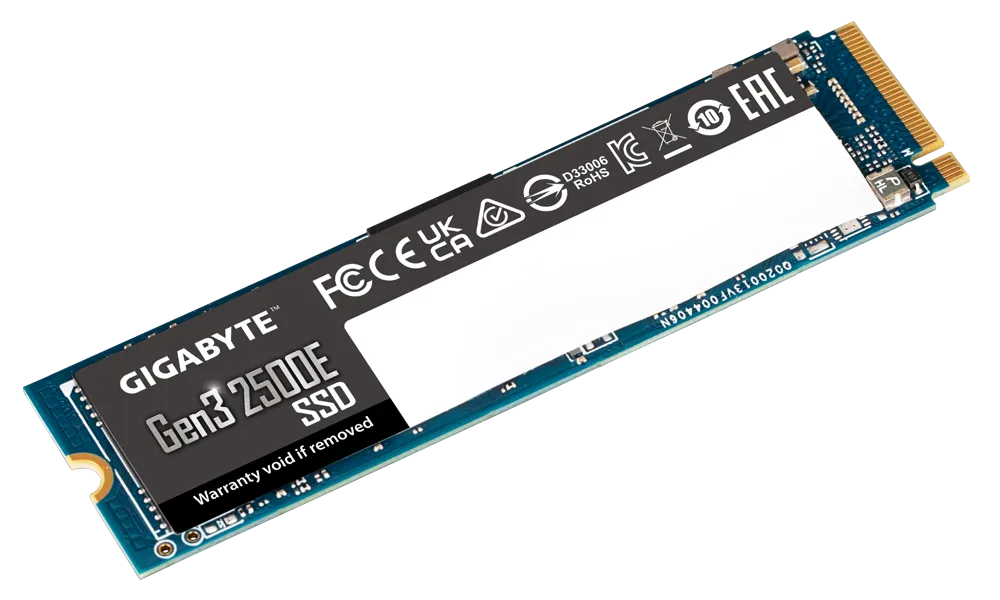

Gigabyte G325E 500G M2 500G PCIe 3.0×4, 2300/1500 MB/s 60k/240Kl MTBF 1.5m hr Limited 3 years or 240TBW

Description

Gigabyte G325E 500G M2 500G PCIe 3.0×4, 2300/1500 MB/s 60k/240Kl MTBF 1.5m hr Limited 3 years or 240TBW

Interface
PCIe 3.0×4, NVMe1.3 interface
Form Factor
M.2 2280
Total Capacity
500GB
External DDR Cache
N/A
Sequential Read speed
Up to 2300 MB/s
Sequential Write speed
Up to 1500 MB/s
Random Read IOPS
Up to 60K
Random Write IOPS
Up to 240K
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Power Consumption (Active)
Average R : 2670mW
Average W : 3200mW
Power Consumption (Idle)
Idle : 30mW
L1.2 < 5mW Temperature (Operating) 0°C to 70°C Temperature (Storage) -40°C to 85°C Warranty 1. Limited 3 years or 120TBW. 2. Limited warranty based on 3 years or 120TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0)
