Aten HDMI HDBaseT Receiver with Dual 4K Output, one local HDMI output, supports up to 4K@70m (Cat 5e/6) and 100m (Cat 6A), extends RS232 and IR

Description

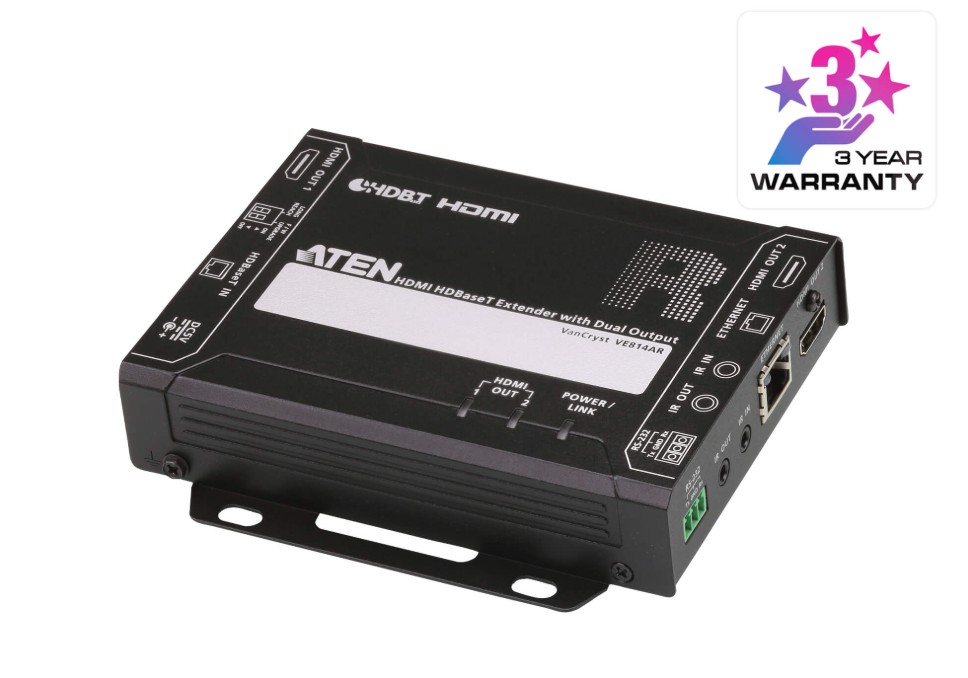

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
Superior video quality:
• 4K up to 100 m
• 1080p up to 150 m when in HDBaseT Long Reach Mode
Extends Ethernet communication using the Ethernet pass-through port*
Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
ATEN EDID Technology — when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Supports wide screen format
Built-in 8 kV/15 kV ESD protection
Plug-and-play
Rack-mountable

Package Contents
1x VE814AR Receiver
1x RS-232 Terminal Block
1x Power Adapter
1x User Instructions
