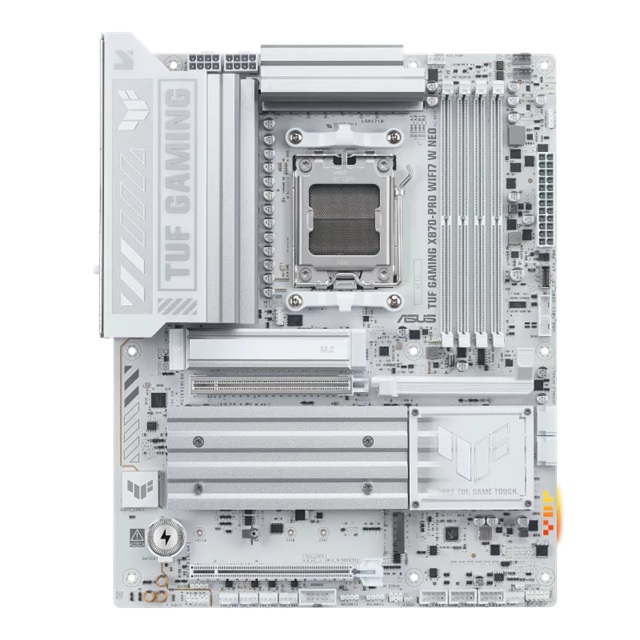

ASUS AMD TUF GAMING X870-PRO WIFI7 W NEO, AM5,X870,4DDR5 256GB,PCIe5.0,M.2×4,WiFi7,BT5.4,5GbE,USB4x2,HDMI,ATX,3yr wty

Description

ASUS AMD TUF GAMING X870-PRO WIFI7 W NEO, AM5,X870,4DDR5 256GB,PCIe5.0,M.2×4,WiFi7,BT5.4,5GbE,USB4x2,HDMI,ATX,3yr wty

SPECIFICATION
Model
TUF GAMING X870-PRO WIFI7 W NEO
News & Updates

Please visit our GLOBAL website to check and download the latest updates.

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset
AMD X870 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors,
9600+MT/s(OC)*/9000+MT/s(OC)** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM***
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and

Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** PCIEX16(G4) slot shares bandwidth with the The M.2_4 slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)***
2 x SATA 6Gb/s ports
* The 2 x USB4® (40Gbps) ports share bandwidth with the M.2_2 slot. The USB4 Controller runs at PCIe 4.0 x2 mode when a device is installed in the M.2_2 slot. The M.2_2 slot runs at PCIe x2 mode by default. You can switch M.2_2 to M.2_2 X4 mode in the BIOS, but this will disable the USB4® (40Gbps) ports.
** Specifications vary by CPU types.
*** The M.2_4 slot shares bandwidth with the PCIEX16(G4) slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.

RAID Support
AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Ethernet
1 x Realtek® 5Gb Ethernet
TUF LANGuard

BIOS
64MB (512Mb) Flash ROM, UEFI AMI BIOS

Operating System
Windows 11

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
