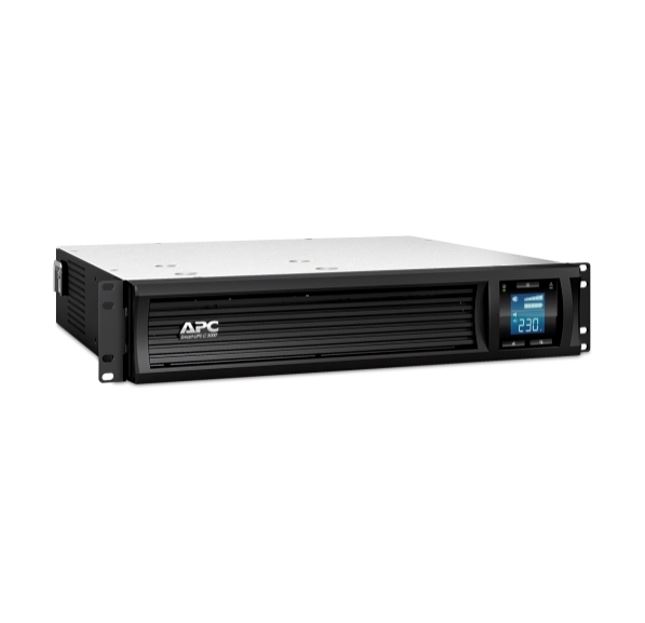

APC Smart-UPS C 3000VA/2100W Line Interactive UPS, 2U Rackmount, 230V/16A Input, 1x IEC C19 & 8x IEC C13 Outlets, Lead Acid Battery

Description

APC Smart-UPS C, Line Interactive, 3kVA, Rackmount 2U, 230V, 8x IEC C13+1x IEC C19 outlets, USB and Serial communication, AVR, Graphic LCD

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 3000VA/2100W line-interactive UPS provides pure sinewave power to support critical electronics during power disruptions. The 2U rack mount SMC operates in green mode for high operating efficiency. It comes with IEC 320 C20 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets and 2x IEC jumper cables. Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, and edge networks. It conforms to CE, C-Tick, GOST, EAC, GS Mark, IRAM, SABS and VDE.
Run time for load 2100 W 4min 31s
Min-max: 210-2100 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 2100 W
Rated power in VA 3000 VA
Input Connection Type IEC 320 C20
Output connection type- 8 IEC 320 C13l, 2 IEC Jumpers, 1 IEC 320 C19
Number of rack unit 2U
Number of cables 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting brackets, USB cable
(power cable not incl)
Input voltage limits 180..287 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Acoustic level 42dBA
Heat dissipation 81 Btu/h
Operating altitude 0..10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %

Mounting mode- Rack mounted
Replacement Battery – APCRBC151
Compatible Service bypass panels-SBP16KRMI4U, SBP5000RMI2U, SBP6KRMI2U, SBP3000RMHW, SBP3000RMI
Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
Compatible Racks- ACF127, AP5717, AP5719, AP5808, AP5816
Compatible Spare parts- ACF127, W870-8135
Compatible Mounting- AP9625, AR201, NBAC0302
